A CONTEMPORARY FARMHOUSE STYLE ADU

The Ash Street ADU is designed to be situated as a detached accessory dwelling unit on your property. Featuring 1 bedroom, 1 bath, and a great room that includes the kitchen, dining, and living areas.

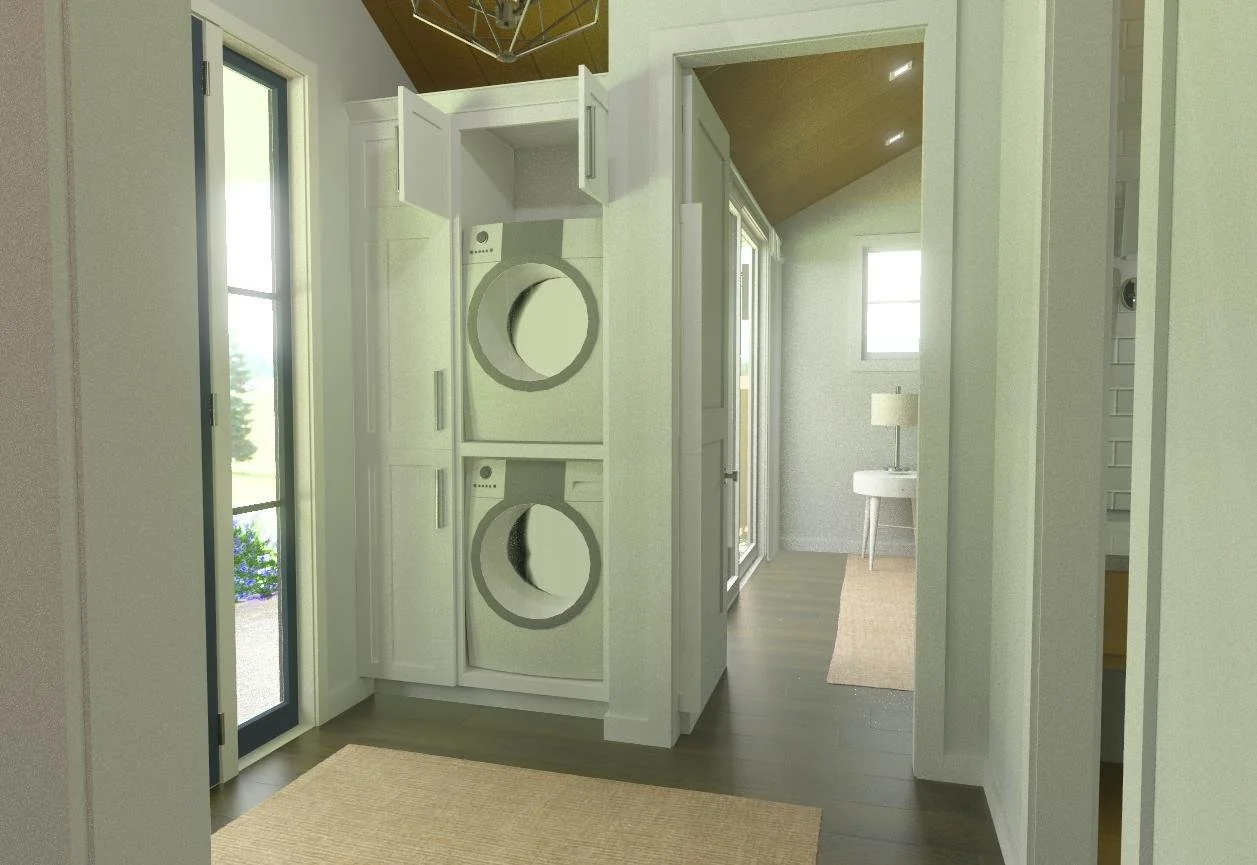

A stackable laundry unit provides plenty of storage space. The smaller size of this house plan makes it a perfect additional guest house or tastefully designed home for those who prefer a modest footprint. The exterior materials include a board & batten siding, a standing seam metal roof. And doors and windows featuring contrasting black frames.

.

1 FLOOR

1 BEDROOM

1 BATH

9’-0” CEILING HEIGHT

RAISED FOUNDATION

EXTERIOR MATERIALS: VERTICAL SIDING, STANDING SEAM METAL ROOF

WINDOW STYLE: CASEMENT

HOUSE DIMENSIONS: 45 FT. x 19 FT.

A R C H I T E C T U R A L P L A N S E T :

• Cover Sheet with title, area calculations & renderings

• Floor Plans with window & door schedules

• Roof Plan

• Exterior Elevations

• Building Sections

• Conceptual Electrical & Lighting Layout

  For more information on what’s included in a plan set, see the article “The Plan Set, Explained” on our Resources page.

A D D I T I O N A L S E R V I C E S U P O N R E Q U E S T :

- Provide interior elevations and specifications (i.e. tile, cabinet style, paint colors)
