A NAPA RANCH STYLE HOME

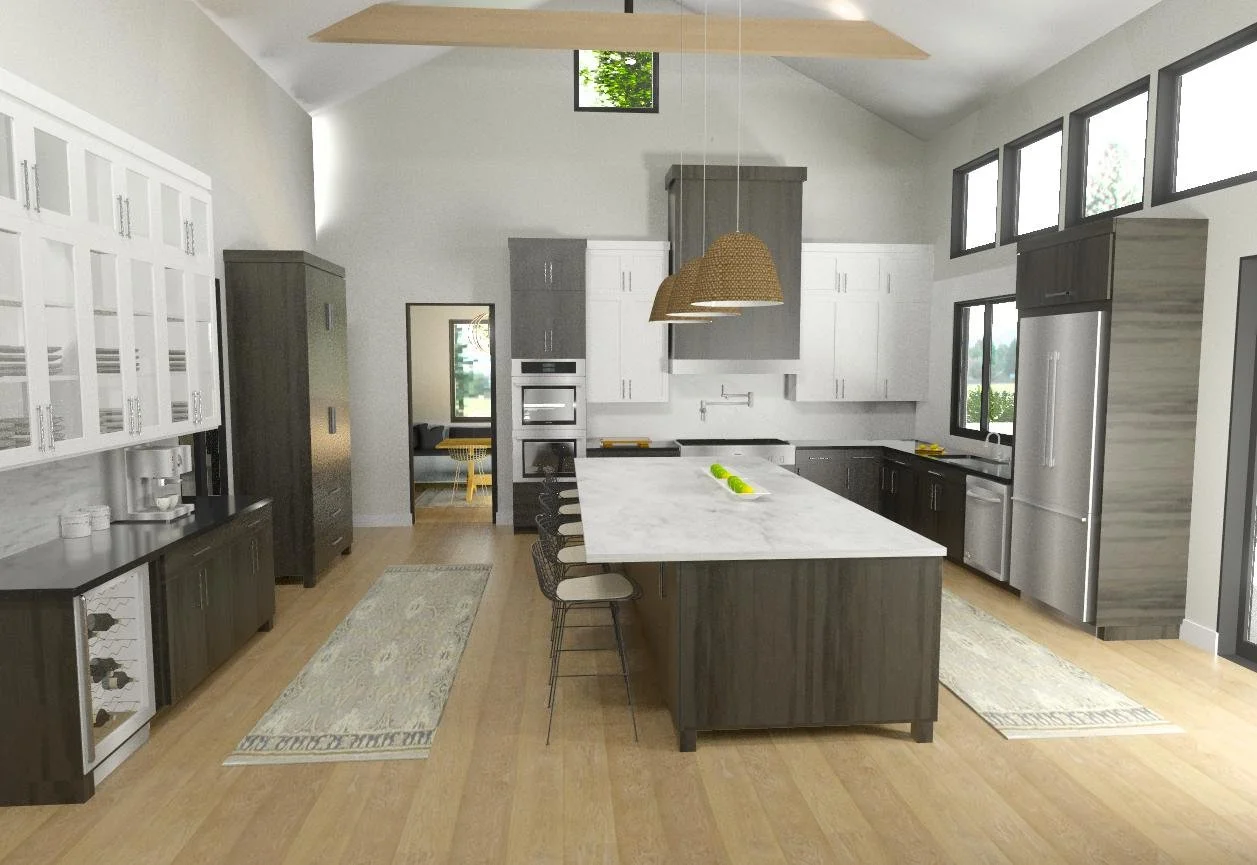

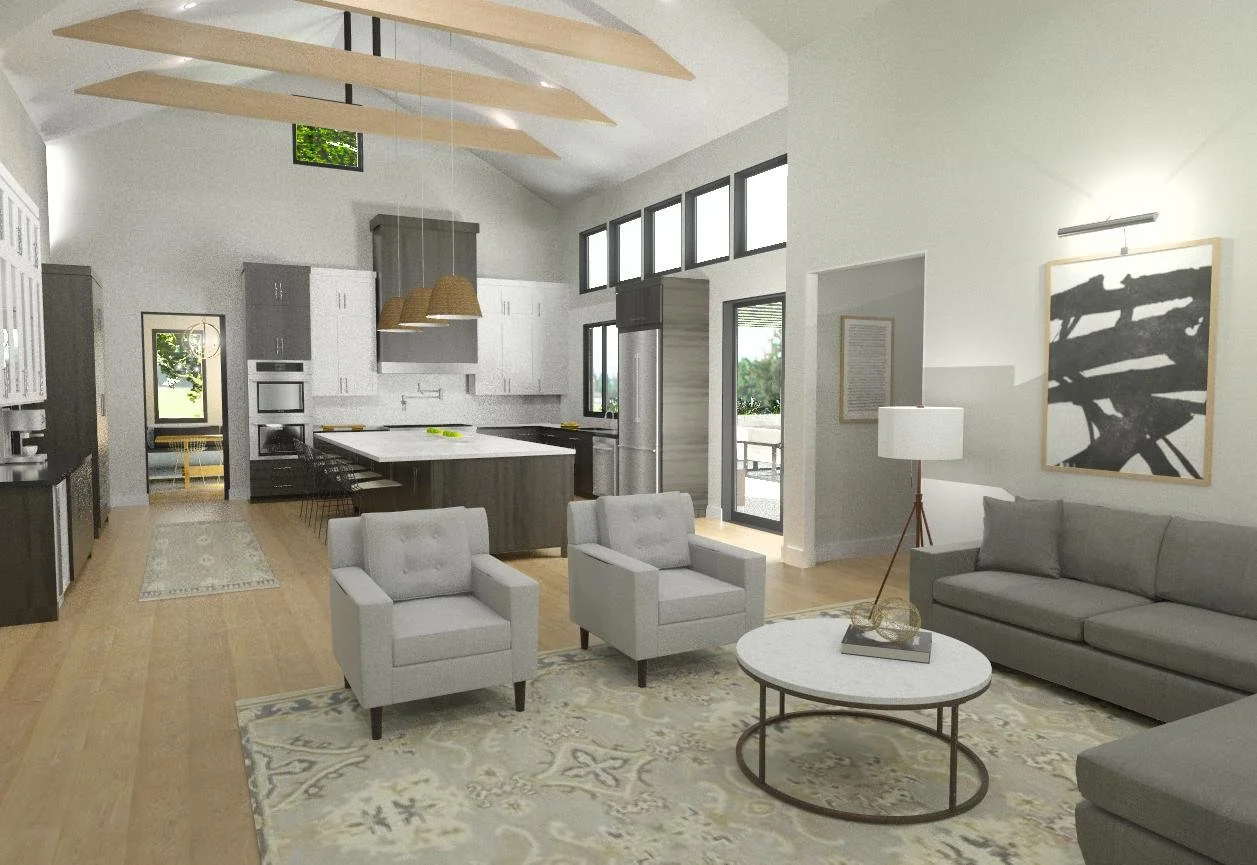

The Vineyard Drive house plan and design is a rambling ranch style home that features a living room with a 2-sided fireplace to the Family Room, a charming Breakfast Nook with a well-appointed Kitchen with an open concept to the spacious ‘Great Room’ to host family and friends with a large patio for outdoor entertaining.

This beautiful home has been thoughtfully designed into a u-shaped patio style home so that each room can enjoy an abundance of natural light. This is a nice-sized home with over 3,600 square feet of living space and 10 foot high ceilings as a minimum height throughout. The Great Room, Dining Room, Living Room, and Grand Suite have vaulted ceilings. There are 5 Bedrooms and 3 Baths along with a spacious Laundry Room.

Reminiscent of the beautiful ranch and barn style imagery of California’s Napa Valley, this home has been designed with the outdoors in mind. Many of the rooms have patio doors opening to the outdoor patios and landscape. There is an abundance windows to enjoy the scenery and landscape design around your home. The overall house design is a reflection of today’s desired lifestyle.

1 FLOOR

5 BEDROOMS

3 BATHS

10’-0” CEILING HEIGHT

RAISED FOUNDATION

EXTERIOR MATERIALS: HORIZONTAL SIDING, STUCCO, STONE VENEER, STANDING SEAM METAL ROOF

WINDOW STYLE: CASEMENT

GARAGE: ATTACHED

HOUSE DIMENSIONS: 59 FT. x 114 FT.

A R C H I T E C T U R A L P L A N S E T :

• Cover Sheet with title, area calculations & renderings

• Concept Site Plan

• Floor Plans with window & door schedules

• Roof Plan

• Exterior Elevations

• Building Sections

• Conceptual Electrical & Lighting Layout

  For more information on what’s included in a plan set, see the article “The Plan Set, Explained” on our Resources page.

A D D I T I O N A L S E R V I C E S U P O N R E Q U E S T :

- Provide interior elevations and specifications (i.e. tile, cabinet style, paint colors)
